Stainless Steel Tank Fabrication for a Copper Mining Operation

Sep 15
3 min read

Updated: Oct 13

When a Copper Mining Operation Needed Custom Stainless Steel Storage Tanks, They Came to G-Tech Steel: A Comprehensive Overview

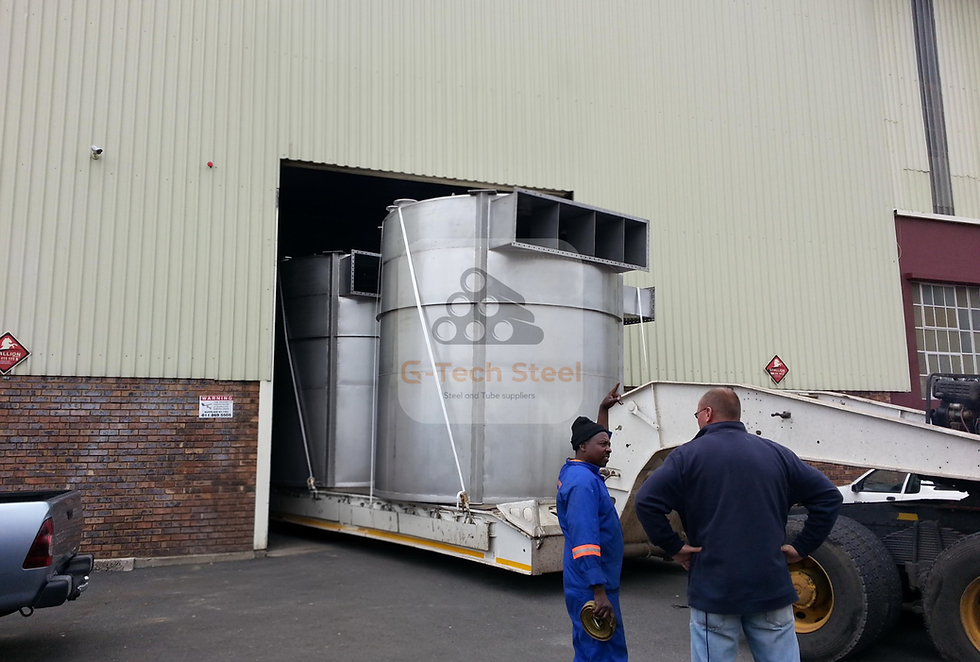

Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application

Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application — ready for collection at our Thulisa Park yard


Understanding the Client's Needs


Copper mining operations deal with aggressive process chemicals. These include acids, leachate solutions, and slurry. Such substances can destroy ordinary mild steel in a matter of months. Therefore, the client required storage tanks that could withstand these harsh conditions. The tanks needed to avoid degradation, prevent contamination of the process, and minimize maintenance requirements.


The specifications were clear: custom stainless steel tanks fabricated to the client's dimensions. These tanks had to be built for long-term chemical resistance in an active mining environment. They were to be collected from our fabrication yard in Thulisa Park, Johannesburg.

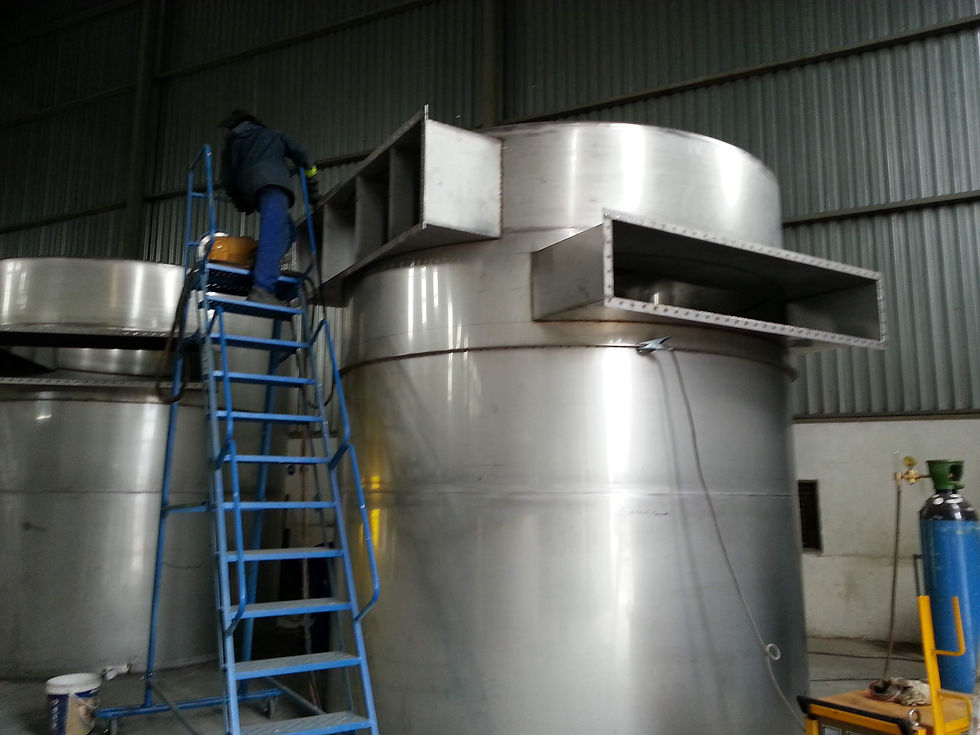

Welding on Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application —

Welding on Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application — ready for collection at our Thulisa Park yard


Why Choose Stainless Steel for Copper Mining?


Copper extraction typically involves hydrometallurgical processes. This includes crushing ore, leaching it with sulphuric acid, and recovering dissolved copper through electrowinning or solvent extraction. Each stage of this process involves corrosive liquids at varying temperatures and concentrations.


Mild steel fails quickly under these conditions. It corrodes, contaminates the process stream, and introduces iron into a system where it is an unwanted impurity.


Stainless steel, particularly Grade 304 and Grade 316, resists corrosion effectively. The chromium content in stainless steel forms a passive oxide layer on the surface. Grade 316 includes molybdenum, which enhances resistance to chloride attack. This makes it the preferred choice when dealing with sulphuric acid or salt-based leachates.


For our mining client, the choice of stainless steel was not optional; it was an engineering requirement.


The Stainless Steel Tank Fabrication Process


Material Selection and Sourcing


We sourced stainless steel plate to meet the client's specified grade. We selected sheet dimensions to minimize weld seams and reduce potential weak points in the finished tank wall.


Cutting and Forming


The plate was cut to the required dimensions and rolled to form the cylindrical shell. Rolling stainless steel requires controlled pressure. If the pressure is too aggressive, the material can work-harden unevenly, creating stress concentrations. Our team adhered to the client's specifications for wall thickness and diameter.


Welding Techniques


All welds were completed using TIG (Tungsten Inert Gas) welding. TIG is the standard for stainless steel tank fabrication. It produces a clean, controlled weld bead with minimal spatter and no contamination of the weld pool. The inert gas shield prevents oxidation, which is critical for maintaining the corrosion-resistant properties of the base material at the weld zone.


We completed the welds in a consistent sequence to manage thermal distortion and ensure the tank remained true to dimension.


Fitting Out Components


We welded inlet and outlet nozzles, manholes, and any client-specified fittings in position. Each component was checked for alignment. Internal surfaces were inspected for weld integrity before handover.


Inspection and Finishing


Once completed, the tanks underwent inspection for dimensional accuracy and weld quality before the client collected them. We finished external surfaces as specified.


Collection from Thulisa Park


The tanks were collected directly from our fabrication yard located at 30 Brunel Street, Thulisa Park, Johannesburg. The client arranged their own transport, and we loaded and secured the tanks for road transport to the site.


Collection from our yard is available for all fabrication projects. For clients arranging their own logistics, we provide load plans, weights, and securing points upon request.

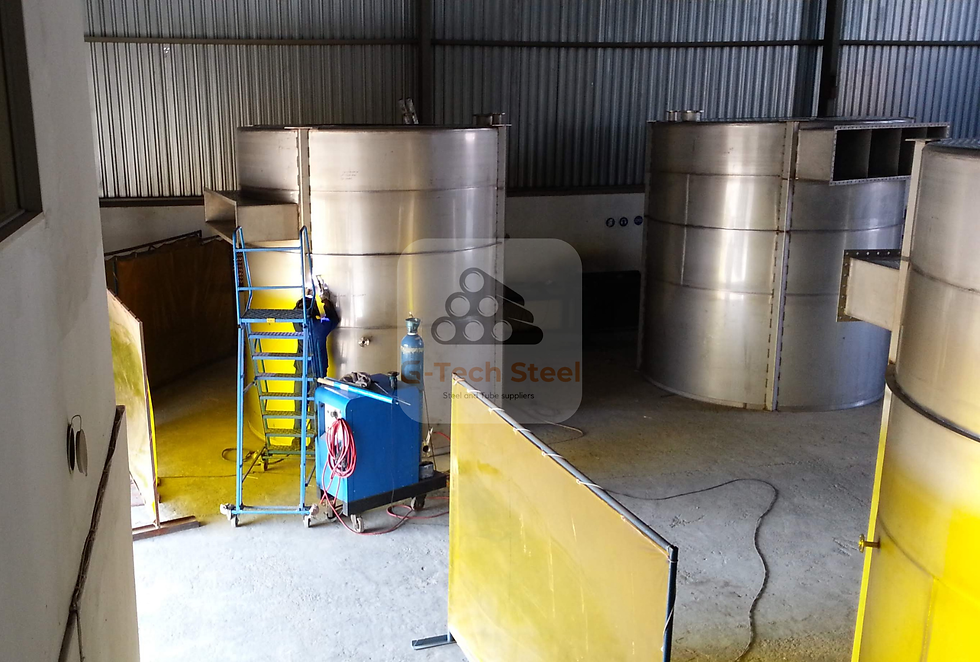

Multiple Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application — ready for collection at our Thulisa Park yard

Stainless steel storage tanks fabricated by G-Tech Steel for copper mining application — ready for collection at our Thulisa Park yard


Key Takeaways from This Project


This project exemplifies several core competencies of G-Tech Steel: material knowledge, precision welding, dimensional control, and logistics coordination for clients operating in demanding industrial environments.


We are not a large-volume stainless tank manufacturer. Instead, we specialize in fabricating to specific briefs. We work directly with clients on specifications and produce finished components ready for collection or delivery. This process occurs without long queues or minimum order requirements.


Our Fabrication Services for Mining, Industrial, and Infrastructure Clients


If you require custom fabricated steelwork for a mining or industrial application—such as tanks, hoppers, structural components, pipework, cat ladders, walkways, or conveyors—we welcome your inquiry.


Tell us what you need. We will inform you whether we can build it, what it will cost, and when it will be ready.
